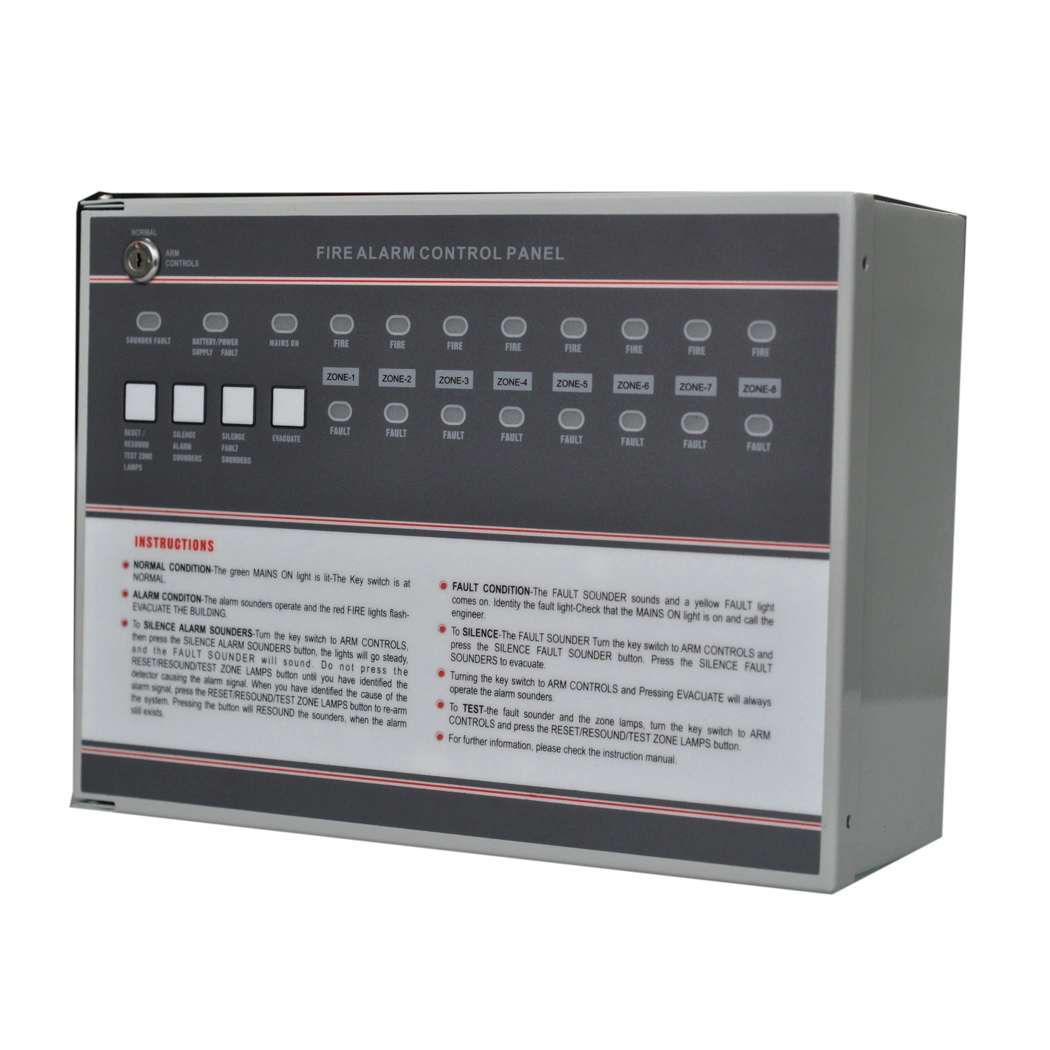

EXTERNAL (KEYSWITCH OPERATED)

• Reset / Resound / Test Zone Lamps

• Evacuate

• Silence Alarm Sounders

• Silence Fault Sounders

INTERNAL

• One Man Detector Test

• Zone isolate

• Revert to short circuit = fire (no resistors in call points)



EXTERNAL INDICATORS

• Reset / Resound / Test Zone Lamps

• Evacuate

• Silence Alarm Sounders

• Silence Fault Sounders


INTERNAL INDICATORS

• Open circuit zone fault

• Short circuit zone fault

• Zone isolate

• Engineer test selected



OUTPUTS

Two sounder circuits (alarm relay contacts can be obtained by connecting a relay to a sounder circuit)

Ancillary connections for expansion modules will allow the following:

1.Repeater panels

2.Multiple sounder outputs

3.Connection to landlord panel
