Fire Fighting FIFI System Pump (300m3/h, 600m3/h, 1200m3/h, 1500m3/h, 2400m3/h)
CCS/ABS/BV etc
Fire Monitor Capacity:160-3600m3/h

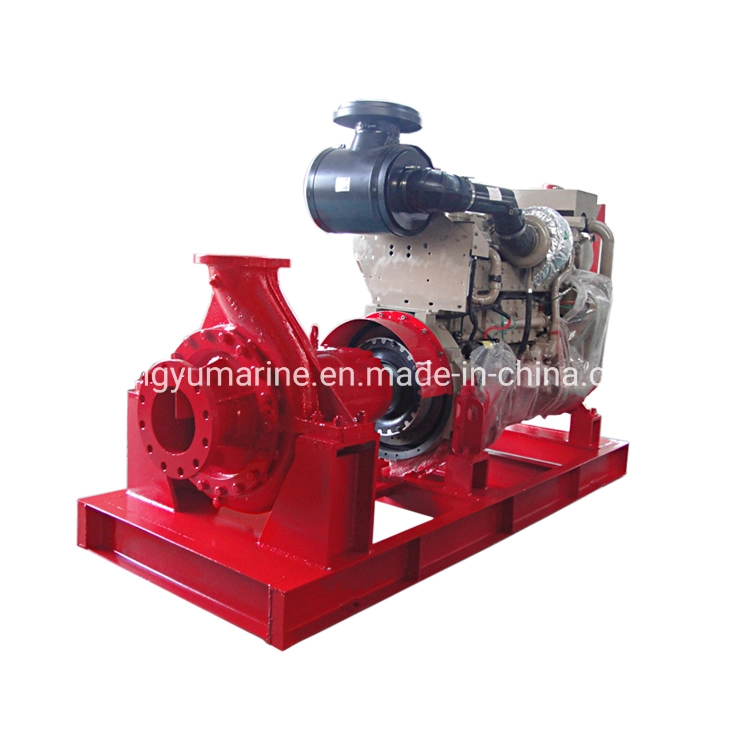

Fire Pump:4 Cycle, 8 Cylinder, 24VDC
Cummins Diesel engine

Introductions:
1.firefighting equipment Approval:ABS,CCS,BV,DNV etc
2.fire fighting equipment material:stainless steel
3.Capacity of fire monitor/fire pump : 160m3/h,180m3/h ,360m3/h ,600m3/h , 900m3/h , 1200m3/h , 3600m3/h ,etc
4.firefighting equipment Type:Supply external Fire Fighting Systems , FiFi1/4,FiFi1/2, FiFi 1, FiFi 2 , etc
5.Fire Fighting System Engine:Cummins Engine or the demands you need
6.Fire fighting equipment Include:fire pump,fire monitor,with Cummins Engine
7.Firefighting equipment color:red
Technical Parameters for External FIFI System
Class Notation | FiFi1 | FiFi2 | FiFi3 | |||
No. of Monitors | 2 | 2 | 3 | 4 | 3 | 4 |
Monitor capacity (m3/h) | 1200 | 3600 | 2400 | 1800 | 3200 | 2400/2500 |
No. of Pumps | 1-2 | 2 | 2-4 | 2 | 2-4 | |
Total pump capacity (m3/h) | 2400 | 7200 | 7200 | 9600 | 9600/ 10000 | |
Throw length (m) | 120 | 180 (from bow) | 150 | 180 (From bow) | 150 | |
Throw height (m) | 45 | 110 at 70m | 70 | 110 at 70m |
Details of External FIFI System

Our Certification

Please contact us for more information if you are interested in Fire Pump, Water Monitor or external FIFI System.
