Foshan City Sanjiaozhou Electrical Technology Co., Ltd.

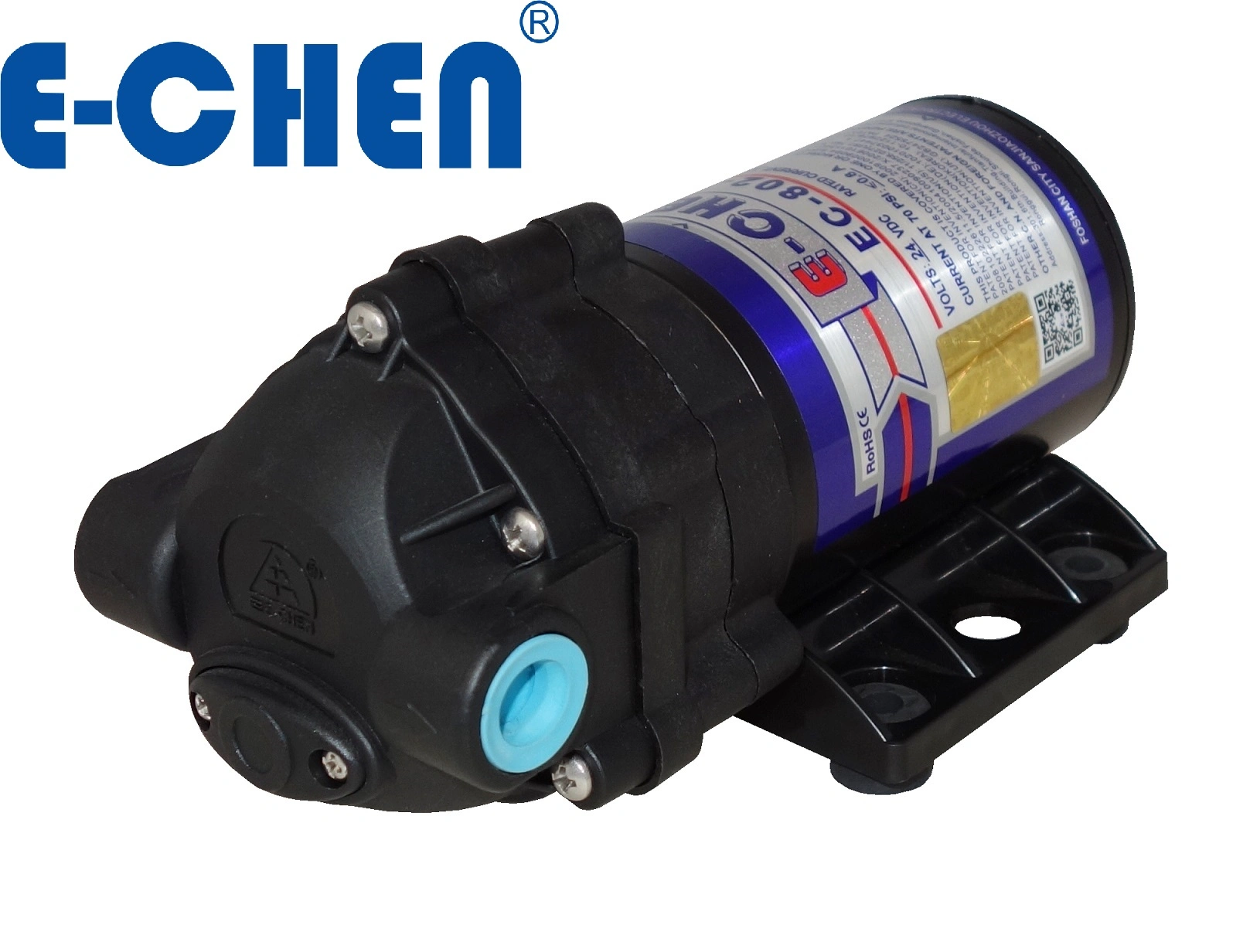

E-CHEN Diaphragm RO Booster Pump 802 Series
Patented product
Compact design
Low noise
High efficiency
Strong Self-Priming
No decompression
Low power consumption
No water leakage problem
No influence from climate or temperature

Compact design
Low noise
High efficiency
Strong Self-Priming
No decompression
Low power consumption
No water leakage problem
No influence from climate or temperature
Materials of Construction: |
Nylon Housing EPDM Valves Santoprene Diaphragm Stainless Steel Fasteners |
Applications for E-CHEN Booster Pump: |
Pre-Filter Water Treatment RO Boost Carbonation Systems Misting Systems Medical Labwater Fuel Cells |


Model | EC-802-75 (75GPD) |
Voltage | 24VDC (12V available) |
Rated Current | 1.4A |
Current At 70 PSI | ≤1.0A |
Flow At 70 PSI | ≥0.85L/Min |
Ports | 3/8" FPT inlet/outlet |
Recommend Accessories: - 3A Transformer SHIPPING: | |
Net Weight | 1.5Kg each |
Carton Weight | 12 each, 20 Kg |
Carton Size | 50 X 26.5 X 35.5 cm |
SIZE |
191x103x103 Dimension : MM |
EC-802-75
